WIFI & 600' Wireless Remote Controlled Pit Temperature Controller Thermostat

[woodpelletsmoker]

Detailed information at http://www.allchinas.com/probe

This is temperature controller for most Wood,Pellet, Charcoal buring BBQ grill smoker pit. It is fully digital, it has programmable 4 different temperature stages. Its output is P.I.D. control of voltage instead of simply turning on or off the blower. This way the blower speed is tuned stepless, and temperature fluctuation can be as low as 1 F. There is a mounting flange on the blower or the rain proof stainless steel box. You need only to drill 4 bolting holes on your pit to use this smarter temperature controller. It has models of wireless remote controlled and WIFI connection to Internet.


Package price Wolf+fan+ mounting flange US$128



Tiger, wireless remote controlled, effective 200 meters or 600 feet.
Package price Tiger+fan+ mounting flange US$188
You can monitor and CONTROL base controller by handy set at room.



Lion, WIFI connection to Internet. Monitor and control your pit from anywhere including space shuttle.
Package price Lion+fan+ mounting flange US$198



Fox, budget setting. single probe
Package price Fox thermostat+fan+speed regulator US$60
Detailed information at http://www.allchinas.com/probe

[flyweed]

these look pretty nice, and the price is great...can you put one of these on a Ceramic "big green egg? How do I buy one of these..do you have a website?

[woodpelletsmoker]

please visit my eBay store http://cgi.ebay.com/ws/eBayISAPI.dll...e=STRK:MESE:IT
Let me know which model you want. place bid there. I will send you invoice.
web site www.allchinas.com
It can be used in all charcoal burning pit

[woodpelletsmoker]

Suppose all you know this new BBQ temperature controller, dual probes, meat temperature drives the fire, programmable, ramping down/up of 4 temperature stages PID output of variable voltage, 12 VDC fan and battery with rain proof SS box. WIFI & wireless remote control.
This time I just talk how can you mount it on your pit.

Question from customer:

Wifi Controller for Weber Smokey MountainSunday, December 25, 2011 9:53 AM
From: "JMW" <xxxxol>Add sender to Contacts
To: "sale@allchinas.com" <sale>
Hi. I am interested in your Lion package for my Weber Smokey Mountain. I was about to buy a system from XXXXX Instruments when I came across your web site.

My concern with your system is that I'd have to drill holes in my grill. With the XXXXX controller, it has the same blower flange dimensions, but it snaps in with a spring, so you don't have to drill any holes. The spring appears to be very simple, but I don't know where to buy one. There are a lot of people who might buy your system if they did not have to drill holes in their smoker. Another advantage of this spring system is that it is easily removed, so you do not need to worry about it getting wet from the rain.

Here is a link to the XXXXX fan;

http://www.XXXXXins.com/index.php?ma..._image&pID=192

Is there a way for you to provide the same snap in that thy do?

Kind Regards,

Jim Walczak
Minnesota, USA

Answer:
Mounting this system in your pit is easy, simply tell us the dimension of vent door, we will supply flange 2" wider than your vent door. If you push the flange to far end, it will close the vent door. If you make the fan facing vent door, the controller works

This system uses 12 VDC, you can use a small battery, say 4 a.h battery can drive your pit over 12+ hours. You can place controller, battery,fan inside a rainproof SS box, the you can do smoking during rain days

[Dr_KY]

The Lion is very tempting!!!!!!

I have built something like the Fox on my own.

[woodpelletsmoker]

Originally Posted by Dr_KY

The Tiger is very tempting!!!!!!

I have built something like the Fox on my own.

Fox is an universal purpose thermostat.
Tiger is designed for BBQ, especial dual probes.
Wireless remote control makes BBQ much easy job

[Dr_KY]

I like the Lion..

[woodpelletsmoker]

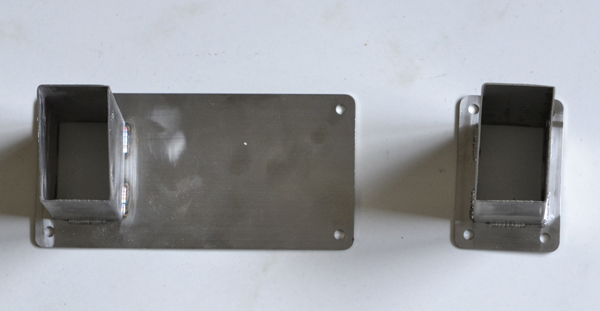

I have made a few different types of adapter to attach fan to your smoker. If none suits your pit, please send me picture and dimension, I will make one for you.

[ebourlet]

Anyone st this up on a Traeger? If so what options should I order to get the wifi and web access?

[woodpelletsmoker]

Originally Posted by ebourlet

Anyone st this up on a Traeger? If so what options should I order to get the wifi and web access?

If you do want this controller on your Traeger, you need to change burner to my gravity feed burner too. Then you will have a much better stable temperature

[AZGAMD]

Does anyone have any pictures of how this set-up would attach to a New Braunsfels silver smoker offset with the side door?

[woodpelletsmoker]

Originally Posted by AZGAMD

Does anyone have any pictures of how this set-up would attach to a New Braunsfels silver smoker offset with the side door?

It seems you need fan adapter A
If you can drill a 1" hole, fan Adapter C is better

[sweetheatbbq]

I am wanting something that will give me the temp of the meat and pit temp and run one unit for 2 smokers. I don't really need the fans. Also I like the wifi idea. Do you have something that will do this?

[woodpelletsmoker]

What you want is a thermometer.
iGrill with bluetooth shall be the best, price $70
Then comes NEW Maverick ET732 wireless. price $60
MY thermometer will be born in March, wGrill, with WIFI, dual probes, high/low temperature alarm, graphing, and self-contained re-charging ciucuit for Li-ion battery, AC/DC adapter. booking before March 15 at $58

[Chicken835]

I have been using one of these controllers for over a year now and they work pretty good. I have the contoller and the gravity feed burner mounted on a vertical smoker I built. Temperature fluctuates less than 3 degrees.
